Label Applicator

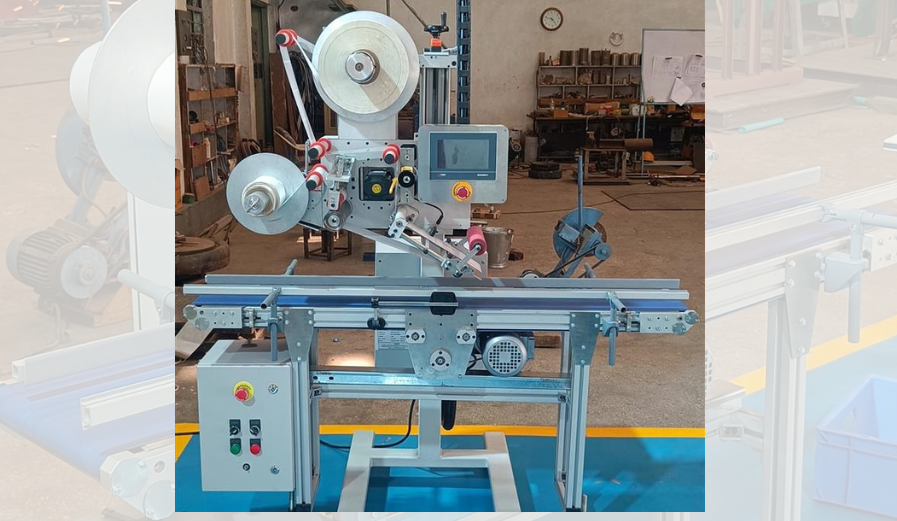

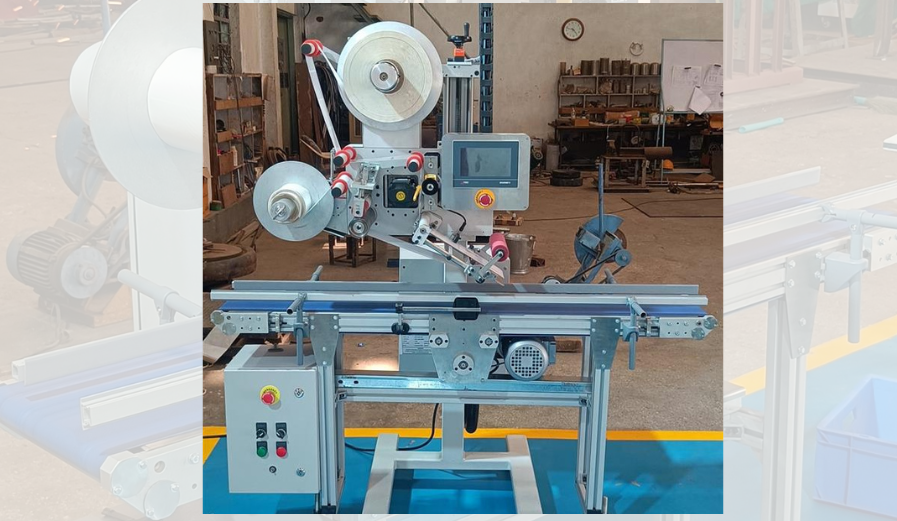

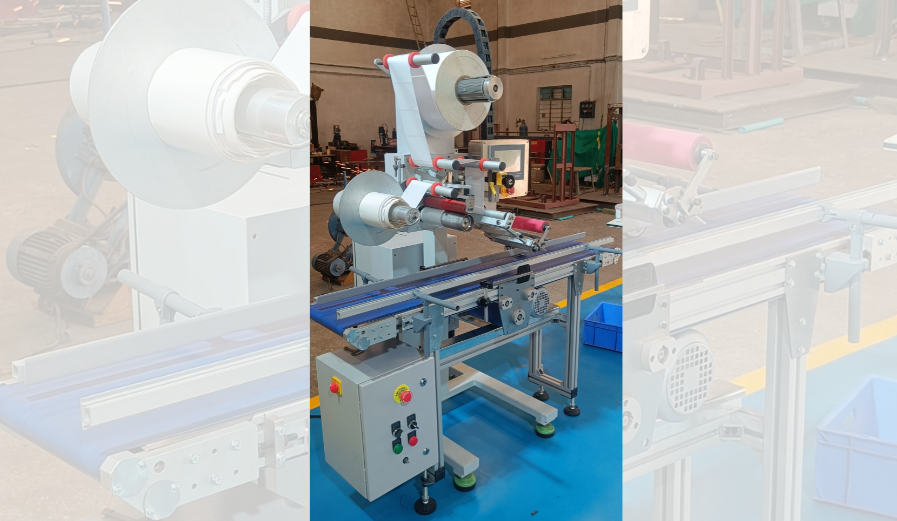

A Top Label Applicator is a machine designed to apply labels automatically to the top surface of products or packaging. This equipment is commonly used in various industries, including food & beverages, pharmaceuticals, cosmetics, and consumer goods. Efficient application of labels enhances branding, provides essential information, and complies with regulatory requirements.

Product Specifications

  • Electrical Requirements: 230VAC, 50 - 60Hz, 1kW
  • Weight: 95kg
  • Environment: 32° to 113°F (0° to 45°C)
  • Speed range: 250 labels/ min, 30m/ min to 200m/ min variable
  • Optional :

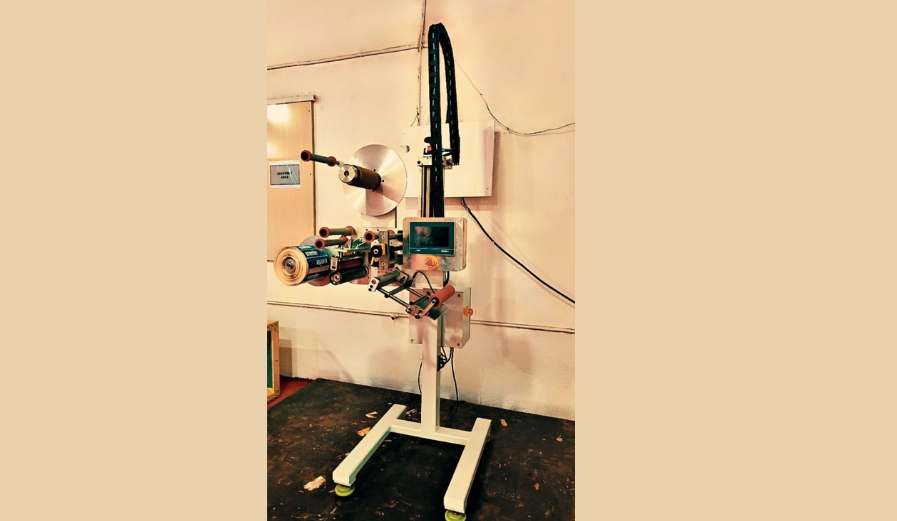

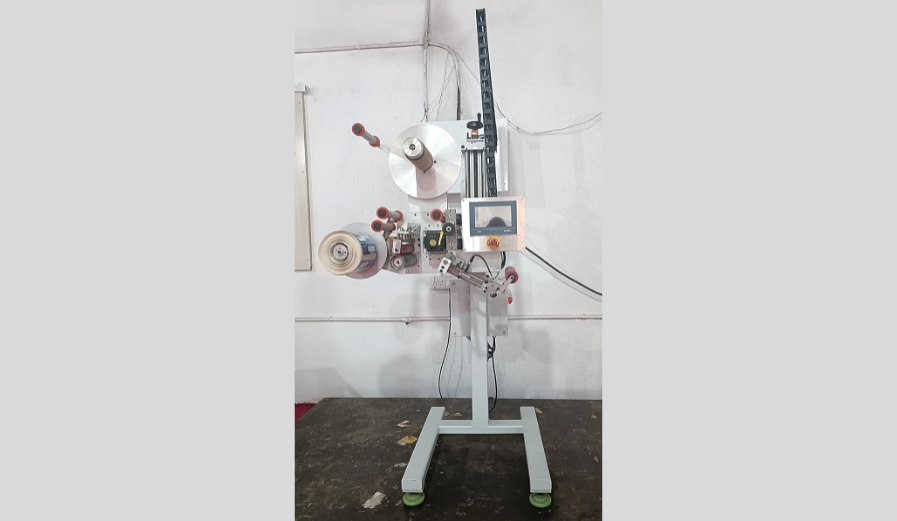

    • Mounting Stand
    • Product Detector
    • Alarm Stack
    • Product Conveyor

Standard Features

  • Label Size: Length: 20mm to 300mm, Width : 12mm to 200mm
  • Direction: left to right or right to left
  • Positional Accuracy:±1mm
  • Unwind capacity: 300mm diameter Core diameter: 3” (76mm)
  • Touch screen display: 7" (177mm)
  • Setup functions for: Setup functions for: web speed, label stop, label sensitivity, product delay 10 recipe storage
  • Standard Inputs: Product detector & Label detector

Applications

  • Food and Beverages: Applying nutritional information, barcodes, and expiry dates
  • Pharmaceuticals: Ensuring compliance with health regulations by labeling dosage instructions and safety warnings.
  • Cosmetics: Branding and product information labeling for retail display.
  • Industrial Products: Labeling items for inventory management and tracking
  • Packaging Industry: Product Labeling items
